Review inspection standards and download a catalog

Each rod or tube will be individually inspected at each stage of the manufacturing process, including polymerization, grinding, polishing, buffing, final inspection, and packaging. Rods and tubes shall be free from scratches, cracks, warping, blisters, voids, bumps, dirt, or other foreign matter that affect appearance or performance, except as noted below.

US CAST's cast acrylic rods and tubes conform to specifications of ASTM D5436; are certified by the FDA for food contact according to CFR 21 177.1010; UL approved for flame resistance according to UL 94HB.

Cosmetic Inspection Specifications

A blemish within quality standards may include minor scratches from handling which can be easily removed by polishing. Since end-user appearance and performance criteria vary widely, United Resins will, at its sole discretion, replace any rod or tube which meets United Resin's Inspection Criteria, but does not meet the needs of the customer.

Optical Clarity - Cast Acrylic Tubes. Polished cast acrylic tubes shall have optical clarity allowing print of approximately 0.125" high character type to be read under good lighting through both walls over the entire length of the tube.

Optical Clarity - Cast Acrylic Rods. Polished cast acrylic rods shall have optical clarity allowing clean print of seven lines per inch to be read under good lighting through the diameter of the rod over the entire length of the rod.

Blemish within quality standards - Bubbles - Cast Acrylic Tubes. Tubes shall not have any bubbles that protrude through any sidewall or are more than 50% of the wall thickness. No bubble shall exceed 0.125" in any dimension. There shall be no more than three bubbles in any 12-inch section of cut or full-length tubing.

Blemish within quality standards - Cracks - Cast Acrylic Tubes. Tubes shall be free of cracks which extend through the wall thickness of the tube. Some micro-cracks, visible only under special lighting conditions, may be present and will be acceptable unless they do not meet the reasonable special appearance or performance needs of the customer.

Blemish within quality standards - Scratches - Cast Acrylic Tubes. Tubes shall be free of easily detectable scratches except that minor scratches from handling which can be easily removed by polishing may exist.

Blemish within quality standards - Dents/Indentations - Cast Acrylic Tubes. Tubes shall be free of easily detectable dents or indentations, except that one indentation of 0.0625" or less shall be acceptable in any cut length.

Blemish within quality standards - Dirt - Cast Acrylic Tubes. Tubes shall be free of easily detectable dirt or foreign matter, except that three particles of 0.156" or less shall be acceptable in any cut length. Defects smaller than 0.039” (1 mm) shall be disregarded.

Blemish within quality standards - Warping - Cast Acrylic Tubes. Tubes shall be straight to sight.

Blemish within quality standards - Waviness - Cast Acrylic Tubes. Tubes shall be smooth. Waviness is acceptable as long as print-reading specifications are within tolerance.

Length - Cast Acrylic Rods and Tubes. Rods and tubes shall have a cut-length tolerance of +/- 0.125". 5-foot long tubes generally measure ~60.8" and shall not be cut except at request of the customer. Full length rods (5-, 6-, or 8-feet long, depending on diameter) may be cut longer than nominal length to afford greater flexibility in customer use. Blemish within quality standards of any type in the excess length portion may be present.

Manufactured Lengths and Diameters

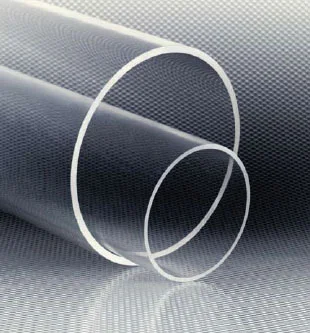

US CAST manufactures cast acrylic tubes in five-foot lengths and tubes can be custom cut to any length. Tubes are manufactured in twenty-nine diameters, from 1.5" to 14" OD. Standard wall thickness are 1/8", 3/16",1/4", 3/8", with 1/2" available on request.

Standard size tube length is 5'

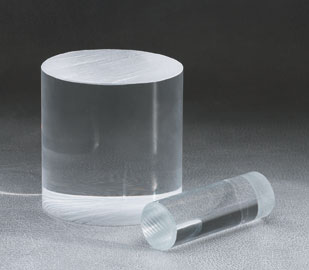

US CAST cast acrylic rods are manufactured in lengths from five feet to eight feet, depending on diameter and can be custom cut to any length. Rods are manufactured in thirty-two diameters, ranging from 1/4" to 6".

Standard size rod length is:

  • For diameters <1.5 " ... 8'
  • For diameters between 1.5" and 3" inclusive ... 6'
  • For diameters >3" ... 5'

US CAST's cast acrylic rods and tubes conform to specifications of ASTM D5436; are certified by the FDA for food contact according to CFR 21 177.1010; UL approved for flame resistance according to UL 94HB.

US CAST Cast Acrylic Tube Tolerance Specifications

Tubes Nominal Outside Diameter (inch)

Outside Diameter Tolerance (inch)

1.5  -  3.0

+/- 0.020"

3.25  - 3.75

+/- 0.030"

4.0  -  6.0

+/- 0.045"

6.5  -  14.0

+/- 0.065"



Tubes Nominal Wall Thickness (inch)

Wall Thickness Tolerance (inch)

0.125

+/- 0.020"

0.1875

+/- 0.020”

0.25

+/- 0.025"

0.375

+/- 0.036"


US CAST Cast Acrylic Rod Tolerance Specifications

Rods Nominal Outside Diameter (inch)

Outside Diameter Tolerance (inch)

0.25  -  0.375

+/- 0.005"

0.5  -  1.0

+/- 0.010"

1.125  -  2.0

+/- 0.015"

2.125  - 3.0

+/- 0.030"

3.25  -  6.0

+/- 0.045"
